LEICA 24-90MM F/2.8-4 VARIO-ELMARIT-SL ASPH USER REVIEW

IS IT THE BEST “NORMAL” ZOOM EVER?

First, a disclaimer: this is a Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH user review based on its use for landscape photography, not a formal in-depth review. You’ll not find numbers, charts or images taken under controlled conditions. What you’ll find instead is my informed opinion of this lens, illustrated with dozens of real-world photographs taken in the field during one and a half year of professional work with the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH at all focal lengths.

Master Series Workshop in Iceland Spring 2019

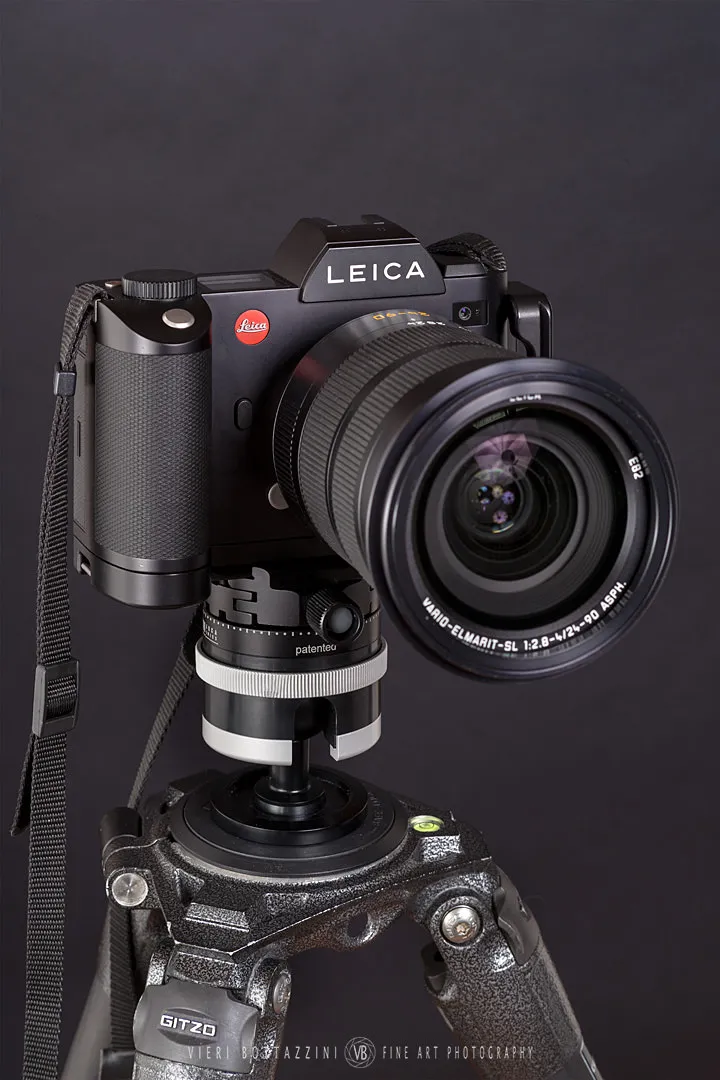

BUILD, SIZE AND WEIGHT

The Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH is, to date, one of two zoom lenses available for the Leica SL system, the other being the 90-280mm Vario-Elmarit-SL f/2.8-4 APO. As expected from a Leica product, the lens is extremely well built. Its weather-sealed, all-metal body feels solid – indestructible, in fact – and doesn’t show any play or noise in use, nor any zoom creep. Following Leica’s philosophy of simplicity of use and clean design, controls on the lens are extremely minimalistic: on the barrel, you’ll find only a zoom ring, closer to the camera body, and a focus ring, closer to the front element. Both rings are very well dampened and feel great in use; the focus ring doesn’t have a hard infinity stop. The lens extends when zooming; it is at its shortest at 24mm and at its longest at 90mm. Its front element doesn’t rotate neither while zooming nor while focusing, thus allowing for easy use of filters. Finally, the lens is optically stabilised.

At work in Tuscany with the Leica SL and 24-90mm Vario-Elmarit-SL

At work in Tuscany with the Leica SL and 24-90mm Vario-Elmarit-SL

The Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH measures 3.46 x 5.43” (88 x 138 mm) and weighs in at 2.51 lb (1140 gr). When the Leica SL first came out, I have seen online reports and old Leica users complaining in forum about the weight and size of this lens. Personally, coming from DSLR and Medium Format, I find the lens very well balanced and wonderful to use on the Leica SL. Leaving personal impressions aside, let’s now see what the numbers tell us.

1. Leica SL (847 gr with battery), Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH (1.140 gr): total weight, 1.987 gr or 4.38 lb
2. Nikon D850 (1005 gr with battery), Nikon 24-70mm f/2.8 (1.070 gr): total weight, 2.075 gr or 4.57 lb
3. Canon 5DS R (930 gr with battery), Canon 24-70mm f/2.8 (805 gr): total weight, 1.735 gr or 3.82 lb
4. Sony A7R III (657 gr with battery), Sony 24-70mm f/2.8 (886 gr), total weight: 1.543 gr or 3.40 lb
5. Pentax K-1 (1010 gr with battery), Pentax 24-70mm f/2.8 (787 gr), total weight: 1.797 gr or 3.96 lb

The Nikon setup is heavier than the Leica, and the Canon setup doesn’t offer image stabilisation as the other four; that leaves only the Pentax and Sony setup as lighter alternatives offering image stabilisation. However, we have to consider that both the Sony and Pentax setup offer a focal length range limited to 70mm, while in the Leica’s case we enjoy a 24-90mm range. Considering the 20mm more reach, I think we can safely consider the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH not really as heavy as one first might think.

Size-wise, rather than giving you numbers, the best thing I can do is sharing here a link to a camera size comparison website (a picture is worth a thousand words!) where you can find the 4 cameras side by side (I didn’t add the Pentax K-1 since the website doesn’t list the Pentax 24-70mm f/2.8, at least for now): http://camerasize.com/compact/#639.496,718.479,596.286,724.515,ha,t Those thinking that the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH would be enormous on the Leica SL will very likely be surprised by the results. The camera and lens combination is actually smaller than most competitors, and even more so if you don’t consider the protruding EVFs / OVFs of all cameras in the comparison.

In conclusion, if you are a DSLR user the Leica SL plus Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH combination will feel just great in your hands. You’ll get a slightly smaller setup weighing more or less as the one you are used to, but featuring much better build quality and more reach. On the other hand, if you are used to M lenses on a Leica M body, of course the Leica SL with the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH will feel big and heavy to you in comparison: these two systems are so different from conception to realisation to purpose, however, that I feel it’s a bit like comparing apples with oranges.

USE OF FILTERS

For landscape work, being able to use square filters with a lens is fundamental; even better if you can use a 100mm system for all your lenses rather than having to resort to the huge, unpractical 150mm system. With the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH there are no problems whatsoever: thanks to the lens’ 82mm thread, I can use my 100mm Formatt-Hitech Firecrest adapter with its very convenient built-in polariser without any vignetting even at the widest focal lengths (read my BEST FILTERS FOR LANDSCAPE PHOTOGRAPHY REVIEW article for more information on filters).

AUTOFOCUS AND AF SPEED

Autofocus is very flexible and well implemented on the Leica SL, allowing you to move your focus point all over the frame and to access two level of magnifications while focussing for extremely precise positioning of your focus point. This is a fantastic feature for landscape photography, and it’s something that no traditional DSLR can offer. AF speed is extremely fast and precise with the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH on the static subjects I normally shoot. More importantly, thanks to its wonderful EVF the Leica SL can focus with the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH even with a ND filter mounted on the lens. This makes my work in the field much less complicated and much faster than with a traditional DSLR, where with a ND filter on I couldn’t see anything and I had to remove and reattach my filter holder every time that I needed to adjust framing, composition or focussing.

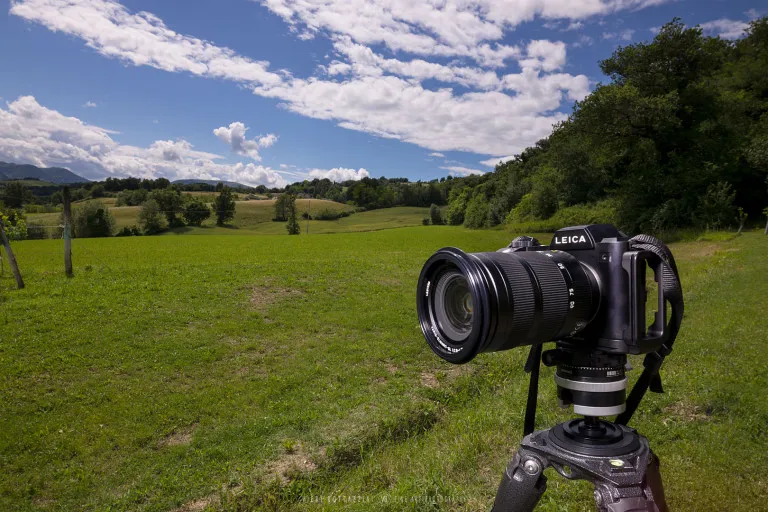

At work in Spain with the Leica SL and 24-90mm Vario-Elmarit-SL

At work in Spain with the Leica SL and 24-90mm Vario-Elmarit-SL

For my work, however, I prefer to set the camera to manual focus altogether: I find that combining MF with the distance scale on the top LCD is a much faster way of working. Plus, even when setting the camera to MF, the Leica SL still allows me to use single-AF by pressing the rear joystick if needed.

IMAGE QUALITY

The Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH is my workhorse; together with the Voigtlander 15mm Super Wide-Heliar f/4.5 v. III, it’s definitely my most used lens on the Leica SL. I used it extensively in the field at all focal lengths, day-in, day-out, both for my work and during my Workshops, since first getting the camera in early 2016. Aperture-wise, for my work I normally stay between f/8 and f/11, sometimes going up to f/16 or even f/22 either to maximize depth of field or for sunstars effects if needed. After testing the lens when I first got it, and besides the occasional portrait, I almost never used my Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH for my professional work wide-open; therefore, I won’t discuss image quality at larger apertures in this report. That said, let’s now look into the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH’s image quality.

SHARPNESS

This will be a very short section. The Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH is extremely sharp all over the frame, over the whole lens range. During these 18 months of work with it, I never came upon any sharpness problems caused by the lens.

FLARE RESISTANCE, GHOSTS & CONTRAST

The Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH resists to flare pretty well at all focal lengths, especially considering that – due to my constant use of filters – I almost never use this or any other lens with their lens hoods on.

Despite the high amount of glass (18 elements in 15 groups) of its optical formula, images created with the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH are contrasted and punchy, in most cases even when shooting into the sun; doing this, however, may reveal in certain cases some ghosts and internal reflections. This doesn’t happen very often, and when it does you can either slightly change your shooting angle to try and get rid of them, or use a lens hood, which works very well to completely eliminate flare and ghosts. On the other hand, when shooting into the sun you might decide to keep whatever little ghosts there are for artistic reasons, as well – as we know, there are situations where photographers add them after the fact.

At work in Tuscany with the Leica SL and 24-90mm Vario-Elmarit-SL

At work in Tuscany with the Leica SL and 24-90mm Vario-Elmarit-SL

The Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH features very high contrast both at macro and micro level, and this results in images with extreme clarity and detail, giving the feeling of huge depth. I routinely examine all my images at 200% on my computer, both for thoroughly cleaning them from sensor dust and to check the quality of the file. Blowing the DNG created with the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH at 200%, you’ll almost see no loss of detail, which is something I have never seen with any other camera I have used in the past. The Leica SL with the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH definitely punches above its weight when it comes to resolution. Overall, I would describe images created with the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH as extremely detailed and with a very tri-dimensional feel to them. They are at the same time technically impressive and artistically very beautiful.

CHROMATIC ABERRATIONS, DISTORTION & DIGITAL CORRECTION

As I mentioned in my LEICA 30-90MM F/3.5-5.6 VARIO-ELMAR-S ASPH USER REPORT, there is a long on-going debate online about whether the quality of a lens shall be determined regardless of eventual software corrections transparently introduced at camera level. Of the various aspects of image quality, this debate touches mostly the correction of chromatic aberrations and distortion: obviously, software cannot make a lens sharper or more flare resistant than it optically is, but it can definitely help to remove chromatic aberrations and fix distortion digitally.

To me, this is somehow a moot debate: I appreciate it that in the film era the optical quality of a lens was just that, a lens’ optical quality, and that lens designers couldn’t rely on any software help after-shooting. I also appreciate it that many photographers today still like to keep to that method when judging a lens’ performance, either because they are used to do so from the old days, or because it sounds better philosophically, or for any other reason. I also understand that for many it is “better”, perhaps even somehow “nobler”, to have an optically-perfect lens rather than a lens digitally “helped” to reach perfection by in-camera processing software.

However, it is clear to me that when we judge lens quality in a digital-only camera system created from scratch like the Leica SL or any other similar systems, more than judging lens quality by itself we are in fact judging a camera-plus-lens system. Speaking about the abstract optical quality of a SL native lens becomes quickly a moot point just because there is no way to examine and determine such quality other than using the lens on the Leica SL: and on the SL in-camera lens correction cannot be turned off, it is simply an integral part of the resulting image.

As a photographer and an artist cameras and lenses are my tools of the trade, my brushes and colours if you will: what counts for me is the results they give me, not how they get there. If I get a picture with no distortion and no chromatic aberrations, and if I don’t see any quality loss caused by the digital corrections applied to the file, then I am extremely happy about the result. Whether this has been achieved purely optically or with the help of in-camera software is really of little interest to me.

Back to the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH, I can say that however the job gets done, whether through Leica’s optical prowess only or through a mix of optical wizardry and software corrections, the lens is extremely well corrected both for CA and distortion at all focal lengths.

Master Series Workshop on Dorset's Jurassic Coast
SAMPLE IMAGES

Below you’ll find some sample images showing what the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH can do in the field, shot during one and a half year of work with the Leica SL and grouped according to their focal length. Let’s start with 24mm (click on the images to enlarge):

Then 28mm (click on the images to enlarge):

Then 35mm (click on the images to enlarge):

Then 50mm (click on the images to enlarge):

Then 75mm (click on the images to enlarge):

And finally 90mm (click on the images to enlarge):

CONCLUSIONS

The Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH, to me, is simply perfect for landscape work. The lens is a wonderful performer all over the frame at every focal length, producing very clean images, crisp, sharp, with beautiful colours and with a very pleasant drawing signature. Images pop on the screen, are very easy and rewarding to work with, and they are very malleable in post-processing.

ZOOM OR PRIMES?

People often ask me how the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH compares with prime lenses; as well, I often read online opinions telling me that it is “almost as good as”, for instance, M lenses on the Leica SL for any given focal length. Personally, I don’t find such comparisons very interesting, nor very useful. In the first place, it doesn’t make much sense to compare a f/1.4 prime with a f/2.8-4 zoom anyway; more, such comparisons depend so much on what you shoot that they rarely hold universal value.

In particular, for my work I think that the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH is not just “almost as good as” primes; rather, I think that it is “definitely better than” primes. First, for my landscape work I almost always shoot between f/8 and f/11, so I don’t have much use for f/1.4 to begin with. Second, I am very often shooting in precarious, even dangerous, conditions: I work on cliff edges, in the ocean, in the middle of rivers, on sand dunes, and so on. I work under the rain, in strong winds, sometimes with very cold hands and sometimes with sweaty hands. Therefore, not having to change lenses in the field often, not having to move filter holders from one lens to the other perhaps while balancing on boulders in the middle of the water, and things like that, is a huge advantage for me, both in terms of sensor cleanness, in terms of reducing possible damage or even loss to the camera and lenses, and – finally – in terms of working speed and workflow’s practicality.

Therefore, a zoom lens that covers the 24 to 90mm range with prime-like image quality at f/8-11, for me and my work is definitely and without a doubt much more useful than a set of primes with equivalent image quality.

70MM or 90MM?

As well, let’s not forget the extra 20mm compared to the “classic” 24-70mm lenses. On paper, they might seem to make little difference; in the field, they often save your bacon. We all know that 70mm is really not so long; personally, when I was using my Nikon system years ago, I always had to bring along a 70-200mm or a 105mm to cover for the lack of a longer end. With the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH, instead, I almost never want for more reach: 90mm is enough for most of my work.

IS THIS THE PERFECT LENS FOR LANDSCAPE?

Between my landscape photography work and my Workshops, I am on the road more than half of the year: all I need everywhere I go is the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH, plus – since I am an ultra-wide lenses lover! – the Voigtlander 15mm Super Wide Heliar v. III to take care of the wide end. These two lenses cover about the 80-90% of my work, day-in, day-out; and if you are not such an ultra-wideangle fan as I am, then very likely the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH will be pretty much all you need.

So, the answer is yes: between its very useful range and the amazing image quality it outputs, I find the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH to be perfect for landscape work with the Leica SL.

THE PERFECT LANDSCAPE KIT

People often ask me what the perfect landscape kit is. Of course, the answer to this question depends mostly on what you shoot, what kind of landscape work you favour, what your aesthetic vision is, and so on. I can answer by telling you what you’ll find in my bag as my standard kit:

1. A Leica SL with the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH always on;
2. A second Leica SL body with the Voigtlander 15mm always on (and for backup);
3. A Voigtlander 10mm Hyper Wide Heliar f/5.6 to cover even more on the wide end.

If the work and the location require it, I add my Leica 90-280mm f/2.8-4 Vario-Elmarit-SL ASPH to cover the long end; my 100mm f/2.8 Macro-Elmarit-R if I want to do macro work; my 50mm f/1 Noctilux-M if I want to do narrow depth of field work or take advantage of the peculiar aesthetic qualities of this lens.

As I said before, this is the perfect kit for me; my suggestion, however, is always to get as much information as you can to be then able to design your kit around your requirements, which are different from mine or anybody else’s.

Master Series Workshop in Iceland Winter 2019
WHO IS THIS LENS FOR

II definitely recommend the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH without reservations to everyone who needs a lens to cover this range: the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH is, simply, the perfect normal zoom. If you do landscape, in particular, it is a no-brainer: this is THE lens to get to make the most of your Leica SL. More, if you are using a different brand and you do landscape, I’ll go as far as saying that this lens, together with the possibility of using the family of hyper-wides from Voigtlander with perfect results, is a good enough reason to make the move to the Leica SL. It’s that good.

Thanks for reading this post, I hope you enjoyed this Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH user report! Why don’t you share it with your friends, or drop me a comment to let me know how you feel about this?

Have a great day, and don’t forget to SUBSCRIBE TO THE NEWSLETTER!

Master Series Workshop in Asturias and the Atlantic

Technical details: all photographs in this article have been shot with the Leica SL equipped with the Leica 24-90mm f/2.8-4 Vario-Elmarit-SL ASPH and Formatt-Hitech Firecrest filters, including Grad NDs (0.6, 0.9, 1.2 and 1.5 stops), Solid NDs (3, 6, 10 and 13 stops) and a Formatt-Hitech Firecrest Circular Polariser. For camera support, I used a Gitzo tripod equipped with an Arca-Swiss P0 Classic ballhead. All photographs have been developed and finished in Adobe Photoshop CC.

Photographs kindly offered by Zeynep Paftali have been shot with Leica V-Lux 4 and iPhone 6 SE.
